Basic Data
Material: Polyamide 6.6 (PA66)
Flammability: UL94 V2
Properties: Acid resistance, corrosion resistance, good insulation, not easy to age, strong endurance.

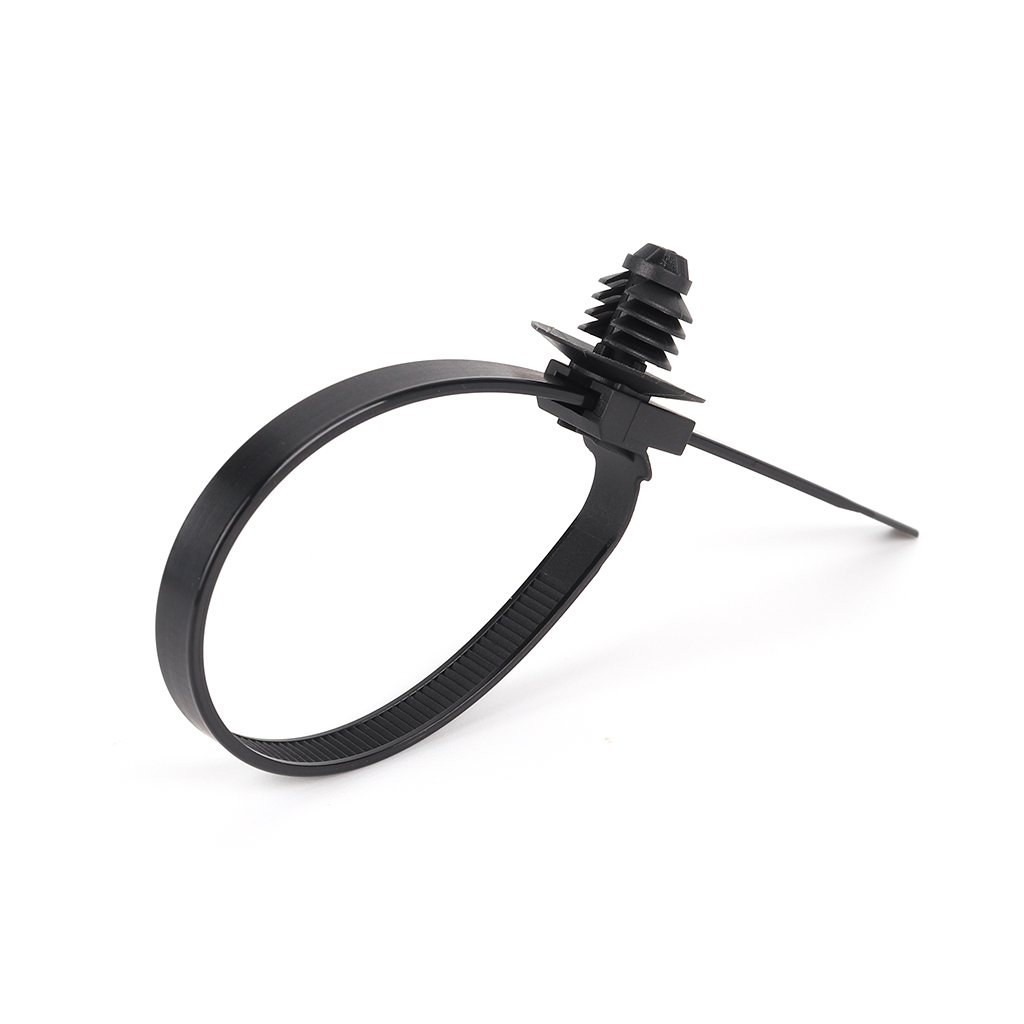

product category:External tooth tie
Is it reuasable: No
Installation Temperature: -20℃~105℃
Working Temperature: -40℃~105℃
Color: The standard color is natural(white) color, which is suitable for indoor usage;
The black color cable tie added the carbon black and UV agent, which is available for outdoor usage.
SPECIFICATION
| Item No. | Width | Length | Thickness | Hole Dia.(φ) | Panel Thickness | Bundle Dia | Tensile Strength | |
| mm | mm | mm | mm | mm | mm | lbs | kgs | |
| SY1-8-55185 | 5.5 | 185 | 1.25 | 6.0~8.0 | 1.0~6.0 | 3.5~43 | 50 | 22 |
| Item No. | L(长) | W(宽) | Max Bundle Dia. | Hole Dia.(φ) | Panel Thickness | Tensile Strength | ||
| Inch | mm | (mm) | (mm) | mm | mm | lbs | kgs | |
| SY1-8-140ST | 5.5″ | 140 | 5.5 | 25 | 6 | 2.3 | 50 | 22 |
| SY1-8-190ST | 7.5″ | 190 | 5.5 | 45 | 6 | 2.3 | 50 | 22 |
Application
Widely used in household, construction, electronic, auto, cable and wire assembly，Can be used to bundle and sort various cables and wires, such as the fixing of wires of lighting, oil pipelines of mechanical equipment, etc.Our Service Guarantee
