Basic Data
Nominal Current Ratings
| Terminal colour | Red | Blue | Black | Yellow |
| Conductor Range(mm²) | 0.5-1.6 | 1.0-2.6 | 2.5-4 | 2.5-6.0 |
| Ring Terminal | 24A | 32A | 37A | 48A |
| Forked Spade | 18A | 24A | 30A | 36A |
| Pin Connector | 12A | 16A | 20A | 24A |
| Lip/Flat Blade | 24A | 32A | 37A | 48A |
| Bullet | 12A | 16A | / | 24A |
| In Line Splice | 24A | 32A | / | 48A |
| Quick Connector | 24A | 32A | / | 48A |
| End Connector | 24A | 32A | / | 48A |
These ratings are a notional suggestions and cover most situations. It assumes defect-free workmanship, natural ambient conditions.
Stripping Lengths
| Terminal colour | Red | Blue | Black | Yellow |
| Conductor Range (mm²) | 0.5-1.6 | 1.0-2.6 | 2.5-4 | 2.5-6.0 |
| Strip Length for Terminals | 4-5mm | 5-6mm | 5-6mm | 6-7mm |
| Strip Length for Line Splice | 7-8mm | 7-8mm | 7-8mm | 7-8mm |
In general, the wire should protrude 1mm out of the front of the terminal

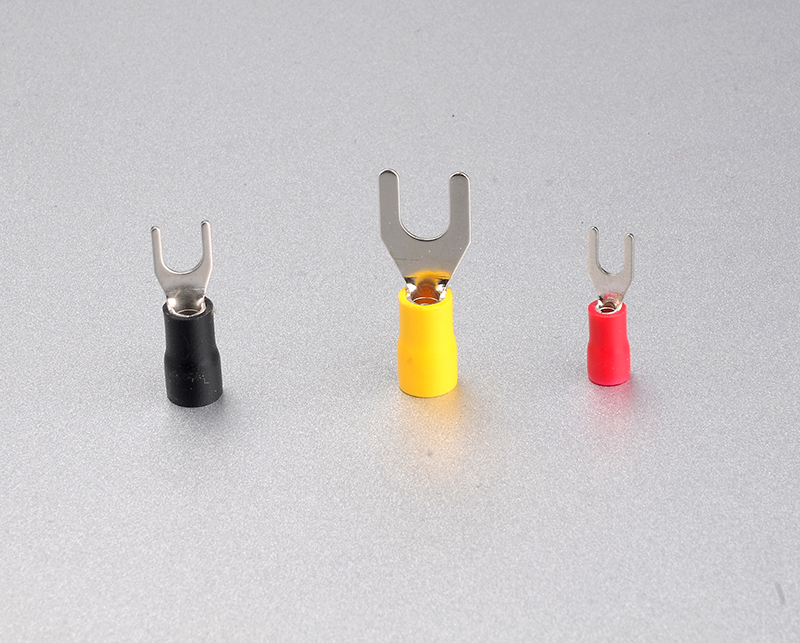

SPECIFICATION
| | Stud Size | Single Grip | Double Grip | American | Dimensions | |||
| d2 | W | F | L | |||||
| H=10.0 d1=1.7 D=4 T=0.75 | M3 | SV1.25-3.2 | SVD1.25-3.2 | #4 | 3.2 | 5.7 | 6.5 | 21.0 |
| M3.5 | SV1.25-3.7S | SVD1.25-3.7S | #6 | 3.7 | ||||
| M3.5 | SV1.25-3.7L | SVD1.25-3.7L | #6 | 3.7 | 6.4 | |||
| M3.5 | SV1,25-3.7LL | SVD1,25-3.7LL | #6 | 3.7 | 7.2 | |||
| M4 | SV1.25-4S | SVD1.25-4S | #8 | 4.3 | 6.4 | |||
| M4 | SV1.25-4M | SVD1.25-4M | #8 | 4.3 | 7.2 | |||
| M4 | SV1.25-4L | SVD1.25-4L | #8 | 4.3 | 8.1 | |||
| M5 | SV1.25-5S | SVD1.25-5S | #10 | 5.3 | ||||
| M5 | SV1.25-5L | SVD1.25-5L | #10 | 5.3 | 9.5 | |||
| M6 | SV1.25-6S | SVD1.25-6S | 1/4" | 6.4 | ||||
| M6 | SV1.25-6L | SVD1.25-6L | 1/4" | 6.5 | 12.0 | 11.0 | 27.2 | |
| M8 | SV1.25-8 | SVD1.25-8 | 5/16" | 8.5 | 13.5 | 11.5 | 26.7 | |
| H=10.0 d1=2.3 D=4.5 T=0.8 | M3 | SV2-3.2 | SVD2-3.2 | #4 | 3.2 | 5.7 | 6.5 | 21.2 |
| M3.5 | SV2-3.7S | SVD2-3.7S | #6 | 3.7 | ||||
| M3.5 | SV2-3.7L | SVD2-3.7L | #6 | 3.7 | 6.0 | |||
| M3.5 | SV2-3.7LL | SVD2-3.7LL | #6 | 3.7 | 7.2 | |||
| M4 | SV2-4S | SVD2-4S | #8 | 4.3 | 6.4 | |||
| M4 | SV2-4M | SVD2-4M | #8 | 4.3 | 7.2 | |||
| M4 | SV2-4L | SVD2-4L | #8 | 4.3 | 7.9 | |||
| M5 | SV2-5S | SVD2-5S | #10 | 5.3 | ||||
| M5 | SV2-5L | SVD2-5L | #10 | 5.3 | 9.3 | |||
| M6 | SV2-6S | SVD2-6S | 1/4" | 6.4 | ||||
| M6 | SV2-6L | SVD2-6L | 1/4" | 6.4 | 12.0 | 11.0 | 27.2 | |
| M8 | SV2-8 | SVD2-8 | 5/16" | 8.5 | 13.5 | 11.5 | 26.7 | |
| H=13.0 d1=3 D=6.3 T=1.0 | M3.5 | SV3.5-3.7 | SVD3.5-3.7 | #6 | 3.7 | 8.0 | 7.0 | 25.3 |
| M4 | SV3.5-4 | SVD3.5-4 | #8 | 4.3 | ||||
| M5 | SV3.5-5 | SVD3.5-5 | #10 | 5.3 | ||||
| M6 | SV3.5-6 | SVD3.5-6 | 1/4" | 6.4 | 12.0 | 9.1 | 28.5 | |
| M8 | SV3.5-8 | SVD3.5-8 | 5/16" | 8.5 | 14.0 | 11.5 | 30.7 | |
| M10 | SV3.5-10 | SVD3.5-10 | 3/8" | 10.5 | 17.5 | 12.5 | 33.5 | |
| H=13.0 d1=3.4 D=6.4 T=1.0 | M3 | SV5.5-3,7S | SVD5.5-3,7S | #6 | 3.7 | 7.2 | 7.5 | 24.4 |
| M3.5 | SV5.5-3.7 | SVD5.5-3.7 | #6 | 3.7 | 8.3 | 7.0 | 25.5 | |
| M4 | SV5.5-4S | SVD5.5-4S | #8 | 4.3 | 7,2 | 7.5 | 24.4 | |
| M4 | SV5.5-4S | SVD5.5-4S | #8 | 4.3 | 8.3 | 7.0 | 25.5 | |
| M4 | SV5.5-4L | SVD5.5-4L | #8 | 4,3 | 9.0 | |||
| M5 | SV5.5-5 | SVD5.5-5 | #10 | 5.3 | ||||
| M6 | SV5.5-6S | SVD5.5-6S | 1/4" | 6.4 | ||||
| M6 | SV5.5-6L | SVD5.5-6L | 1/4" | 6.4 | 12.0 | 12.0 | 31.5 | |
| M8 | SV5.5-8 | SVD5.5-8 | 5/16" | 8.4 | 14.0 | 10.5 | 30.5 | |
| M10 | SV5.5-10 | SVD5.5-10 | 3/8" | 10.5 | 17.5 | 12.5 | 33.5 | |
