Basic Data
Nominal Current Ratings
| Terminal colour | Red | Blue | Black | Yellow |
| Conductor Range(mm²) | 0.5-1.6 | 1.0-2.6 | 2.5-4 | 2.5-6.0 |
| Ring Terminal | 24A | 32A | 37A | 48A |
| Forked Spade | 18A | 24A | 30A | 36A |
| Pin Connector | 12A | 16A | 20A | 24A |
| Lip/Flat Blade | 24A | 32A | 37A | 48A |
| Bullet | 12A | 16A | / | 24A |
| In Line Splice | 24A | 32A | / | 48A |
| Quick Connector | 24A | 32A | / | 48A |
| End Connector | 24A | 32A | / | 48A |
These ratings are a notional suggestions and cover most situations. It assumes defect-free workmanship, natural ambient conditions.
Stripping Lengths
| Terminal colour | Red | Blue | Black | Yellow |
| Conductor Range (mm²) | 0.5-1.6 | 1.0-2.6 | 2.5-4 | 2.5-6.0 |
| Strip Length for Terminals | 4-5mm | 5-6mm | 5-6mm | 6-7mm |
| Strip Length for Line Splice | 7-8mm | 7-8mm | 7-8mm | 7-8mm |
In general, the wire should protrude 1mm out of the front of the terminal

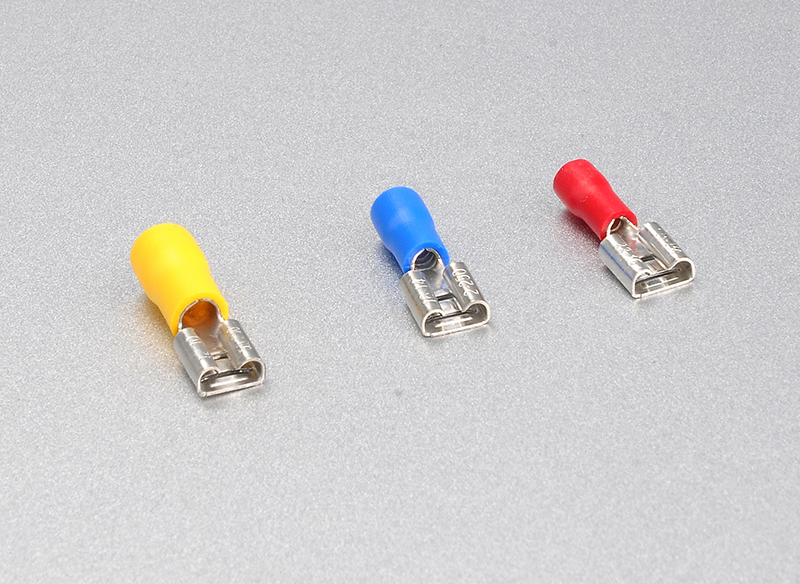

SPECIFICATION
|
| Single Grip | Double Grip | Tab Size | Dimensions | ||
| W | L | T | ||||
| H=10.0 d1=1.7 D=4 | FDD1.25-110(5) | FDG1.25-110(5) | 2.8x0.5 | 3.2 | 18.6 | 0.3 |
| FDD1.25-110(8) | FDG1.25-110(8) | 2.8x0.8 | 3.2 | |||
| FDD1.25-187(5) | FDG1.25-187(5) | 4.8x0.5 | 5.0 | 19.0 | 0.4 | |
| FDD1.25-187(8) | FDG1.25-187(8) | 4.8x0.8 | 5.0 | |||
| FDD1.25-250 | FDG1.25-250 | 6.35x0.8 | 6.6 | 20.5 | 0.4 | |
| H=10.0 d1=1.7 D=4.5 | FDD2-110(5) | FDG2-110(5) | 2.8x0.5 | 3.2 | 18.6 | 0.3 |
| FDD2-110(8) | FDG2-110(8) | 2.8x0.8 | 3.2 | |||
| FDD2-187(5) | FDG2-187(5) | 4.8x0.5 | 5.0 | 19.0 | 0.4 | |
| FDD2-187(8) | FDG2-187(8) | 4.8x0.8 | 5.0 | |||
| FDD2-250 | FDG2-250 | 6.35x0.8 | 6.5 | 20.5 | 0.4 | |
| H=13.0 d1=3.4 D=5.5 | FDD5.5-250 | FDG5.5-250 | 6.35x0.8 | 6.6 | 23.5 | 0.4 |
| FDD5.5-312 | FDG5.5-312 | 8.0x0.8 | 9.1 | 26.5 | 0.5 | |
| FDD5.5-375 | FDG5.5-375 | 9.4x1.2 | 10.9 | 28.6 | 0.5 | |
